Description

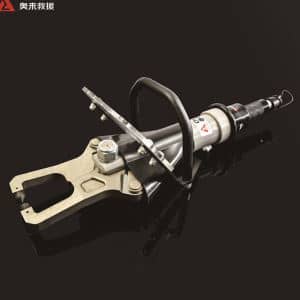

Aolai hydraulic crushed concrete cutter is specially designed for rescue the victim in accidents such as highway, railway, airports and buildings. Rescuers can use the hydraulic crushed concrete cutter to break doors, roof beams, shutters, concrete walls and other obstacles, but also can be used to break the frame of the vehicle cab.
Compared with the regular concrete crusher, the hydraulic crushed concrete cutter has the cutting capacity, the cutting capacity is up to 32 mm circal steel. The opening distance is also larger than the regular conctrte crusher, up to 350 mm.
Items | Specification |
Model | PSJQ-B |
Rated cutting Force | 480KN |
Max. extrusion force | 160KN |
The opening distance of crusher | 350mm |
Rated working Pressure | 72Mpa |
Max. cutting Capacity(Q 235) | Φ32mm round steel |
The opening distance of cutter Blades | 125 mm |
Crusher capacity | Thickness:200mm (C30 concrete floor) |
Weight | 18.1kg |
