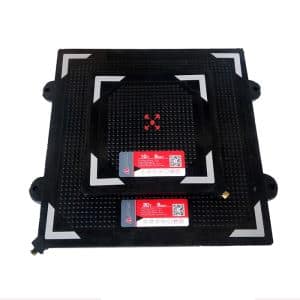

Air Lifting Bags
Rescue Air Bags adopt special technical and material, lightweight and durable.
The convex surface nodes create and interlocking surface which provides superior gripping power when stacked.
Light reflecting labels on top side, better visibility in dark environment which improves safety and user friendliness.
The logo with technical parameter,it’s very easy to find and read at night.
Copper coupler, internal thread, can be connected easily.
Rescue air bags are used for the rescue operation such as traffic accidents, subway accidents, buildings collapse, earthquake and so on. It is powered by the air cylinder or foot pump, used to insert in the narrow gap and expand it.
|Model No.||Working pressure||Dimension (L x W x H)|| |
|Max. lifting height|| |
|ALQD-5||8||30 x 30 x 2.5||2.4||42||16||5.5||6.1|
|ALQD-10||8||38 x 38 x 2.5||4.2||86||21||10.1||11.1|
|ALQD-15||8||45 x 45 x 2.5||6.0||152||25||13.5||14.9|
|ALQD-20||8||55 x 55 x 2.5||8.5||296||30||21.6||24.2|
|ALQD-30||8||61 x 61 x 2.5||11.5||416||34||27.8||29.7|
|ALQD-40||8||78 x 78 x 2.7||19.1||921||42||45||49.1|
|ALQD-50||8||87 x 87 x 2.7||23.9||1305||47||55||60.6|
